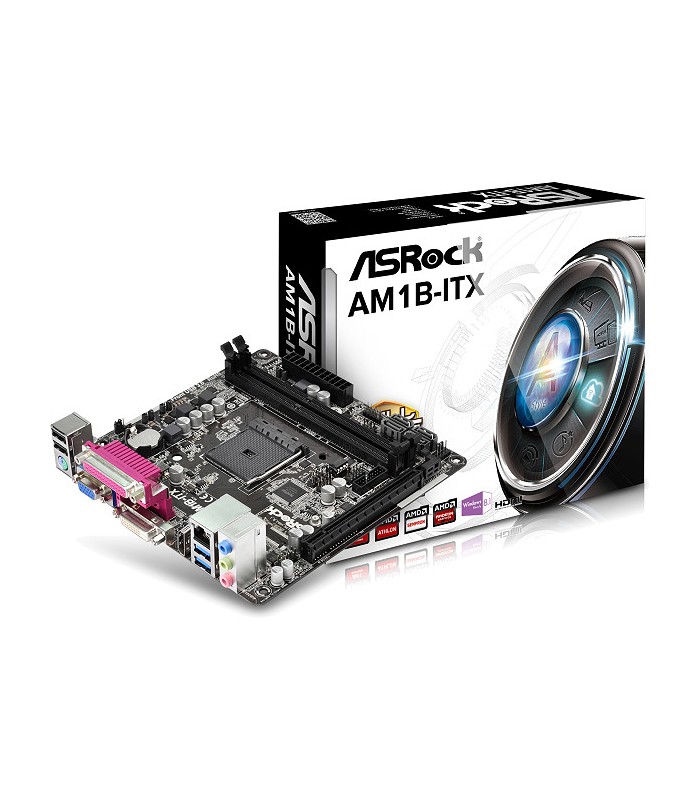

Asrock AM1B-ITX, SAM1, 2xDDR3, 4xSATA3, HDMI, Parallel Port, Mini ITX

Κωδικός: 20459

Κατασκευαστής/ Συμβατότητα: ASRock

Κατηγορία: Μητρικές υπολογιστών

Αυτόματη ειδοποίηση μέσω E-mail όταν το προϊόν γίνει ξανά διαθέσιμο!

Εγγύηση προϊόντος: 24 μήνες

Διαθεσιμότητα: Προσωρινά εξαντλημένο διατίθεται με προπαραγγελία

39.00
General
A-Style - ASRock Cloud
CPU - Supports AMD Socket AM1 Athlon/Sempron APU
Memory - 2 x DDR3 DIMM Slots
- Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 32GB*

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows®64-bit OS with 64-bit CPU, there is no such limitation.
BIOS - 32Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 1.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3.1 support
- DRAM Voltage multi-adjustment
 Audio, Video and Networking
Graphics - Integrated AMD Radeon™ R3 Series Graphics in A-series / E-series APU
- DirectX 11.1, Pixel Shader 5.0
- Max. shared memory 4GB
- Three graphics output options: D-Sub, DVI-D and HDMI
- Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz or 4K x 2K (3840x2160) @ 30Hz
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HDCP with DVI-D and HDMI Ports
- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

*You can choose to use two of the three monitors only. D-Sub, DVI-D and HDMI monitors cannot be enabled at the same time.
Audio - 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
- Supports Full Spike Protection
LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111GR
- Supports Realtek RealWoW! Technology
- Supports Wake-On-LAN
- Supports Full Spike Protection
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
 Expansion / Connectivity
Slots - 1 x PCI Express 2.0 x16 Slot (PCIE1 @ x4 mode)
Storage - 2 x SATA3 6.0 Gb/s Connectors by AMD AM1 Series Socket 25W Quad-Core APU, support NCQ, AHCI and Hot Plug
- 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
Connector - 1 x COM Port Header
- 1 x Chassis Intrusion Header
- 1 x TPM Header
- 1 x CPU Fan Connector (4-pin)
- 1 x Chassis Fan Connector (4-pin)
- 1 x Power Fan Connector (3-pin)
- 1 x 24 pin ATX Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports Full Spike Protection)
- 1 x USB 3.0 Header by ASMedia ASM1042A (Supports 2 USB 3.0 ports) (Supports Full Spike Protection)
Rear Panel I/O - 1 x PS/2 Mouse/Keyboard Port
- 1 x Parallel Port (ECP/EPP support)
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 2 x USB 2.0 Ports (Supports Full Spike Protection)
- 2 x USB 3.0 Ports (Supports Full Spike Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
 Other Features / Miscellaneous
Unique Feature - ASRock A-Tuning
- ASRock APP Shop
- ASRock Instant Boot
- ASRock Instant Flash
- ASRock APP Charger
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Crashless BIOS
- ASRock OMG (Online Management Guard)
- ASRock Internet Flash
- ASRock UEFI Tech Service
- ASRock Dehumidifier Function
- ASRock Easy Driver Installer
- ASRock Interactive UEFI
- ASRock Fast Boot
- ASRock Restart to UEFI
- ASRock USB Key
- ASRock FAN-Tastic Tuning
Hybrid Booster:
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Good Night LED
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial)
Accessories - Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
Hardware Monitor - CPU/Chassis temperature sensing
- CPU/Chassis/Power Fan Tachometer
- CPU Quiet Fan
- CPU Fan multi-speed control
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, Vcore
Form Factor - Mini-ITX Form Factor
- All Solid Capacitor design
- High Density Glass Fabric PCB
OS - Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / XP 32-bit / XP 64-bit
Certifications - FCC, CE, WHQL
- ErP/EuP ready (ErP/EuP ready power supply is required)
