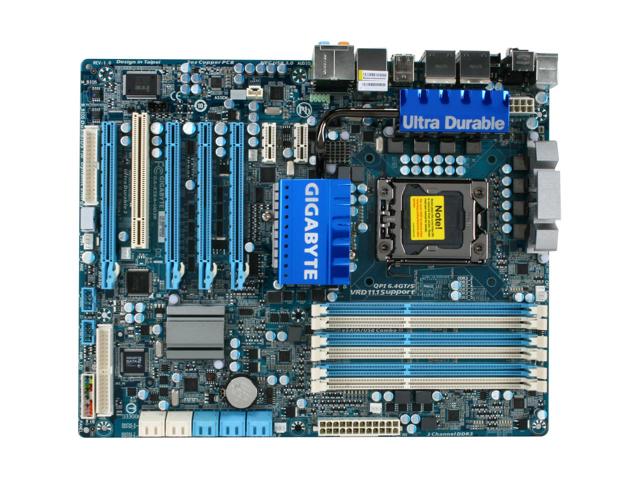

Brand GIGABYTE Model GA-X58A-UD3R Supported CPU CPU Socket Type LGA 1366 CPU Type Core i7 (LGA1366) FSB QPI 6.4GT/S Chipsets Chipset Intel X58 South Bridge Intel ICH10R Onboard Video Onboard Video Chipset None Memory Number of Memory Slots 6×240pin Memory Standard DDR3 2200/1333/1066/800 Maximum Memory Supported 24GB Channel Supported Triple Channel Expansion Slots PCI Express 2 x16 2 x PCI Express x16 slots, running at x16 (PCIEX16_1/PCIEX16_2) (Note 1) 2 x PCI Express x16 slot, running at x8 (PCIEX8_1/PCIEX8_2) (Note 2) (Note 1) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIEX16_1 and PCIEX16_2 slots. (Note 2) The PCIEX8_1 and PCIEX8_2 slots share bandwidth with the PCIEX16_1 and PCIEX16_2 slots espectively. When PCIEX8_1 is populated with an expansion card, the PCIEX16_1 slot will operate at up to x8 mode; when PCIEX8_2 is populated with an expansion card, the PC IEX16_2 slot will operate at up to x8 mode. PCI Express x1 2 x PCI Express x1 PCI Slots 1 x PCI Slot Storage Devices PATA 1 x ATA133 2 Dev. Max SATA 3Gb/s 8 x SATA 3Gb/s SATA 6Gb/s 2 x SATA 6Gb/s SATA RAID SATA 3Gb/s: RAID 0, RAID 1, RAID 5, and RAID 10 SATA 6Gb/s: RAID 0, and RAID 1 Onboard Audio Audio Chipset Realtek ALC889 Audio Channels 8 Channels Onboard LAN LAN Chipset Realtek 8111E Max LAN Speed 10/100/1000Mbps Rear Panel Ports PS/2 2 USB 3 2 x USB 3 USB 1.1/2 4 x USB 2 IEEE 1394 2 x IEEE 1394a eSATA 2 x eSATA/USB Combo connectors S/PDIF Out 1 x Optical, 1 x Coaxial Audio Ports 6 Ports Internal I/O Connectors Onboard USB 4 x USB 2 Onboard 1394 1 x 1394a Physical Spec Form Factor ATX Dimensions (W x L) 12" x 9.6" Power Pin 24 Pin Features Features Support for 2-Way, 3-Way ATI CrossFireX / NVIDIA SLI technology Supports newest NEC SuperSpeed USB 3 with superfast transfer rates of up to 5 Gbps 3X USB power delivery for greater compatibility and extra power for USB devices Provides newest Marvell SE9128 high speed SATA3 storage interface with superfast 6Gbps link speed Unique hardware control IC to provide more precision voltage control Meet European Union EuP(Energy-using Products) requirement
